Intermediate git

Jack Atkinson

Principal Research Software Engineer
ICCS - University of Cambridge

Mikolaj Kowalski

Research Software Engineer
ICCS - University of Cambridge

2026-07-13

Precursors

Slides and Materials

To access links or follow on your own device these slides can be found at:
cambridge-iccs.github.io/intermediate-git

All materials are available at:

• github.com/Cambridge-ICCS/intermediate-git

Licensing

Except where otherwise noted, these presentation materials are licensed under the Creative Commons Attribution-NonCommercial 4.0 International (CC BY-NC 4.0) License.

Vectors and icons by SVG Repo used under CC0(1.0)

Precursors

• Be nice (Python code of conduct)
• Ask questions whenever they arise.
  • Someone else is probably wondering the same thing.
  • For troubleshooting please write a message in the zoom chat and someone will assist you in a thread
  • For more general queries please raise a hand.
• We will make mistakes.
  • You can decide whick of them are intentional.

Learning Objectives

The key objective of this workshop is to provide knowledge of some higher-level functionalities within git beyond basic usage.

We will achieve this through a presentation and accompanying exercises.

• A deeper understanding of how git functions
• A recap of branching
• Stashing
• Patched and amended commits
• Rebasing
• Merge conflicts and resolution
• Bisect to locate issue introduction points

I suggest you have open:

• A text editor or IDE
  • to edit code
• A terminal window
  • to run git
• A browser window
  • to follow these slides

Setup

Setup

1. Clone the repository (or use your fork):

   git clone https://github.com/Cambridge-ICCS/intermediate-git.git
   cd intermediate-git

2. Create a Python virtual environment and install the library:

   python3 -m venv int-git-venv
   source int-git-venv/bin/activate
   pip install --editable .

3. Verify everything works:

   (int-git-venv) $ python3
   Python 3
   Type "help", "copyright", "credits" or "license" for more information.
   >>> from thermolib import constants, moisture
   >>> constants.UNIVERSAL_GAS_CONSTANT
   8.314462618
   >>> moisture.calculate_relative_humidity(vapor_pressure=1500.0, temperature=298.15)
   np.float64(0.4735701395152745)

Background

What is git?

• a version control system developed by Linus Torvalds.¹
• tracks changes made to files over time.
• an entire suite of associated tools.

Rabbit hole from Disney’s Alice in Wonderland under fair use

1. Also the creator of Linux

How does git work?

A mental model:

• Each time you commit work git stores it as a diff.
  • This shows specific lines of a file and how they changed (+/-).
  • This is what you see with the git diff command.
• diffs are stored in a tree.
  • By applying each diff one at a time we can reconstruct files.
  • We do not need to do this in order
    see cherry-picking and merge conflicts…

See Evans (2024) for a longer discussion.

How does git work?

diff --git a/mycode/functions.py b/mycode/functions.py
index b784b07..d08024a 100644
--- a/mycode/functions.py
+++ b/mycode/functions.py
@@ -340,11 +341,10 @@ def rootfind(
         f_old = f_new
         if abs(s_new) > delta:
             x_new += s_new
+        elif s_bisect > 0:
+            x_new += delta
         else:
-            if s_bisect > 0:
-                x_new += delta
-            else:
-                x_new -= delta
+            x_new -= delta

         f_new = f_root(x_new, score)
         val = x_new

• Famous George Box quote

How does git work?

Actually:

• Each time you commit work git creates a snapshot
  • Contains the commit message, a hash ID, a pointer to a parent commit, and a list of all the files and folders in the repository.
• Given a hash we can reconstruct the repo at that state.

Implications:

• Commits are immutable, but
• we can always make new commits, change the parent, and point a branch at them.
  • see amend, rebase, cherry-pick…
• Indeed, this is what we will do in much of this course!

• Famous George Box quote

See Evans (2024) and Mukerjee (2024) for a longer discussion.

Branches (recap)

Branches

If we always work in main our commits appear linearly as we make them:

    %%{init: {'theme': 'dark',
              'gitGraph': {'rotateCommitLabel': true},
              'themeVariables': {
                  'commitLabelBackground': '#bbbbbb',
                  'commitLabelColor': '#ffffff'
    } } }%%
    gitGraph
       commit id: "1-ad4e"
       commit id: "4-ff6b"
       commit id: "0-fd7f"
       commit id: "1-2y4f"
       commit id: "4-664e"
       commit id: "6-d3et"

But what if:

• Someone else is modifying the same files as us?
• We are working on different aspects/features of the project in parallel?
• We find a bug and need to quickly fix it?

Branches

Branches help with all of the aforementioned situations, but are a sensible way to organise your work even if you are the only contributor.

    %%{init: {'theme': 'base',
              'gitGraph': {'rotateCommitLabel': true},
              'themeVariables': {
                  'commitLabelBackground': '#bbbbbb',
                  'commitLabelColor': '#ffffff'
    } } }%%
    gitGraph
       commit id: "4-ff6b"
       commit id: "0-fd7f"
       commit id: "fea 1.a"
       commit id: "fea 1.b"
       commit id: "fea 1.c"
       commit id: "fea 1.d"
       commit id: "5-af6f"

Conduct development in branches and merged into main when completed:

    %%{init: {'theme': 'base',
              'gitGraph': {'rotateCommitLabel': true},
              'themeVariables': {
                  'commitLabelBackground': '#bbbbbb',
                  'commitLabelColor': '#ffffff'
    } } }%%
    gitGraph
       commit id: "4-ff6b"
       commit id: "0-fd7f"
       branch feature
       commit id: "fea 1.a"
       commit id: "fea 1.b"
       commit id: "fea 1.c"
       commit id: "fea 1.d"
       checkout main
       merge feature
       commit id: "5-af6f"

• git branch <branchname>
  • Creates new branch branchname from current point
• git checkout <branchname>
  • move to branch branchname
  • Updates local files - beware
• git merge <branchname>
  • Tie the branchname branch into the current checked out branch with a merge commit.

Tip

Note: We can always review our branches using git branch -v.

Branches

This comes into its own when working concurrently on different features.
git is not just about backups – it is about project organisation.

This way danger and obscurity lies:

    %%{init: {'theme': 'base',
              'gitGraph': {'rotateCommitLabel': true},
              'themeVariables': {
                  'commitLabelBackground': '#bbbbbb',
                  'commitLabelColor': '#ffffff'
    } } }%%
    gitGraph
       commit id: "4-ff6b"
       commit id: "0-fd7f"
       commit id: "fea 1.a"
       commit id: "fea 1.b"
       commit id: "fea 2.a"
       commit id: "fea 1.c"
       commit id: "fea 2.b"
       commit id: "5-af6f"
       commit id: "1-ad4e"

This is manageable and understandable:

    %%{init: {'theme': 'base',
              'gitGraph': {'rotateCommitLabel': true},
              'themeVariables': {
                  'commitLabelBackground': '#bbbbbb',
                  'commitLabelColor': '#ffffff'
    } } }%%
    gitGraph
       commit id: "4-ff6b"
       commit id: "0-fd7f"
       branch feature_1
       commit id: "fea 1.a"
       commit id: "fea 1.b"
       checkout main
       branch feature_2
       commit id: "fea 2.a"
       checkout feature_1
       commit id: "fea 1.c"
       checkout main
       merge feature_1
       checkout feature_2
       commit id: "fea 2.b"
       checkout main
       merge feature_2
       commit id: "5-af6f"
       commit id: "1-ad4e"

Branches

The examples so far have been quite simple, but this gives a good audiovisual example of the power of branches:

Exercise 1

Create a new branch to add an equation for hydrostatic pressure to thermolib/atmospheric.py.

\[ P = P_0 \cdot \exp(-gz / (RT)) \]

where \(g\) is gravity, \(z\) is height, \(R\) is the gas constant, \(T\) is temperature, and \(P_0\) is the surface reference pressure.

The gas constant and gravity are already available in constants.py and imported into atmospheric.py as GRAVITATIONAL_ACCELERATION and SPECIFIC_GAS_CONSTANT_DRY_AIR

Exercise 1 — Solution (Python)

def calculate_hydrostatic_pressure(
    height: float,
    surface_pressure: float,
    temperature: float,
) -> float:
    return surface_pressure * np.exp(
        - GRAVITATIONAL_ACCELERATION
        * height
        / (SPECIFIC_GAS_CONSTANT_DRY_AIR * temperature)
    )

\[ P = P_0 \cdot \exp(-gz / (RT)) \]

Exercise 1 — Solution (Git)

git checkout -b pressure-eqn
# <edit thermolib/atmospheric.py and save>
git add thermolib/atmospheric.py
git commit -m "Add hydrostatic-pressure equation to thermolib/atmospheric."

Amending Commits

Amending Commits

It would be good to have included documentation and error-checking in the code.

We could make a new commit, but it makes more sense for these additions to be part of the same previous commit; we want a clean history.

Enter git commit --amend:

# Make your changes, stage them, then:
git commit --amend

Warning

--amend replaces the old previous commit (complete with new hash), effectively rewriting history for the branch.
We should only use it on our commits in our branch, not on code by others or already on main.

Amending Commits

Enter git commit --amend:

# Make your changes, stage them, then:
git commit --amend

Flag	Effect
None	Open an interactive window to edit the existing message
-m "new message"	Overwrite the previous commit message
--no-edit	Keep the existing message

Tip

Tip: use git log or git show to review the last commit.

Warning

--amend replaces the old previous commit (complete with new hash), effectively rewriting history for the branch.
We should only use it on our commits in our branch, not on code by others or already on main.

When is it useful?

• You forgot to add a file.
• You forgot to change something.
• You added something that shouldn’t be in this commit.
  • for files: git rm --cached
  • for code: git reset --soft and git restore --staged
• You forgot to run formatting/linting.
• You made a typo in your commit message.

Exercise 2

Return to pressure-eqn and add a docstring to your calculate_hydrostatic_pressure function.

Amend your previous commit to include these additions.

Hint: You can find example code on the next slide.

Extension: Also add input validation for the height, temperature, and surface pressure.

Tip

Since we’re only modifying a tracked file we can stage all changes with:

git add -u

Exercise 2 — Solution (Python)

    """
    Calculate pressure at height using hydrostatic equation.

    Describes how atmospheric pressure decreases with altitude. Uses the formula:
    P = P0 * exp(-g*z/(R*T)) where g is gravity, z is height, R is gas constant, T is temperature.

    Parameters
    ----------
    height : float
        Height above surface in meters (m)
    surface_pressure : float
        Surface pressure in Pascals (Pa)
    temperature : float
        Temperature in Kelvin (K)

    Returns
    -------
    float
        Pressure at specified height in Pascals (Pa)

    Raises
    ------
    ValueError
        If height is negative, surface pressure is not positive, or temperature is not positive
    """
    if height < 0:
        error_msg = "Height cannot be negative in atmospheric calculations"
        raise ValueError(error_msg)
    if surface_pressure <= 0:
        error_msg = "Surface pressure must be positive"
        raise ValueError(error_msg)
    if temperature <= 0:
        error_msg = "Temperature must be positive"
        raise ValueError(error_msg)

Exercise 2 — Solution (Git)

# <edit file to add docstrings & validation>
git add -u
git commit --amend --no-edit

Running git log will show that you still have one commit on the pressure-eqn branch, but now it contains the full implementation (see git show) and has a different hash.

Git Stash

Exercise 3.1

To illustrate the benefits of git stash we will start with an exercise adding a new feature (equation) to our code.

Add an equation for potential temperature \(\Theta\) on a new branch:

\[ \Theta = T \cdot (P_0 / P)^{(R / c_p)} \]

where \(c_p\) is the specific heat capacity of dry air at constant pressure.

Best practice says that for a new feature we should do this in new branch from main.

Important

Do NOT commit this work yet - we are about to be interrupted.

\(c_p\) is defined in constants.py as SPECIFIC_HEAT_CAPACITY_DRY_AIR.

Exercise 3.1 — Solution (Python)

def calculate_potential_temperature(
    temperature: float, pressure: float, reference_pressure: float = 100000.0
) -> float:
    return temperature * (reference_pressure / pressure) ** (
        SPECIFIC_GAS_CONSTANT_DRY_AIR / SPECIFIC_HEAT_CAPACITY_DRY_AIR
    )

\[ \Theta = T \cdot (P_0 / P)^{(R / c_p)} \]

Exercise 3.1 — Solution (Git)

git checkout main
git checkout -b pot-temp-eqn
# <edit thermolib/atmospheric.py and save>

Remember, do not commit your code yet as we’re about to be interrupted.

Git Stash

You’re halfway through implementing calculate_potential_temperature when a colleague urgently needs the pressure equation merged to main.

If you try to switch branches:

git checkout main

you get:

error: Your local changes to the following files would be overwritten by checkout:
        thermolib/atmospheric.py
Please commit your changes or stash them before you switch branches.
Aborting

You could commit WIP and amend later, but git stash is designed for this.

What is git stash?

git stash temporarily “stashes” (shelves) your uncommitted changes (staged and unstaged) returning your working directory to the HEAD state.

The changes are stored on a FILO stack known as the stash.

Command	What it does
git stash push	Shelve changes
git stash list	View all stashed items
git stash pop	Apply and remove the top stash
git stash show	Summary of what would be applied
git stash drop	Remove a stash entry (after manual resolution)

After stashing, your working directory is clean and you can freely switch branches.

When is it useful?

Scenario	Why stash helps
Working on the wrong branch	Stash, switch, pop on correct branch
Need to pull remote changes	Stash, pull, pop
Urgent fix on another branch	Stash, fix, commit, pop
Want to test/format only part of a commit	Stash the rest, test, pop

Exercise 3.2

Stash your work on the pot-temp-eqn branch, return to main and merge in the pressure-eqn branch.

Once this is done, return to pot-temp-eqn and pop your work-in-progress from the stash. Complete the implementation of the potential temperature equation and then commit it.

Exercise 3.2 — Solution (Git)

git stash push
git stash list

git checkout main
git merge pressure-eqn

git checkout pot-temp-eqn
git stash pop

# <finish editing thermolib/atmospheric.py and save>
git add thermolib/atmospheric.py
git commit -m "Add potential temperature equation to thermolib/atmospheric."

Git Rebase and Merge Conflicts

Rebasing

git rebase rewrites history by replaying commits on top of a new base.

Before rebase

%%{init: {'theme': 'base', 'gitGraph': {'rotateCommitLabel': true}}}%%
gitGraph
   commit id: "A"
   commit id: "B"
   branch feature
   commit id: "D"
   commit id: "E"
   checkout main
   commit id: "C"

After rebase

%%{init: {'theme': 'base', 'gitGraph': {'rotateCommitLabel': true}}}%%
gitGraph
   commit id: "A"
   commit id: "B"
   commit id: "C"
   branch feature
   commit id: "D'"
   commit id: "E'"

git checkout feature
git rebase main

As well as a branch to rebase on we can also specify a commit hash, tag etc.

Rebasing tips

• Interactive rebase
  • Opens an editor to provide more control over what we do with each commit.
    • edit, reorder, squash, fixup, reword, or drop commits.
  • git rebase -i main
  • Allows editing of previous commits – amend for earlier in history
• Use --onto to specify exactly the commits to rebase
  • git rebase --onto main HEAD~3

Merge Conflicts

A merge conflict occurs when we are moving around commits and two commits modify the same lines in a file.

Often git can figure out what to do, but sometimes it isn;t clear and we need to decide which version to keep.

This will appear in the file as:

<<<<<<< HEAD
latest version of the code on your branch
=======
conflicting version of the code
>>>>>>> other-branch

Resolution

Edit the file to keep the code you need, and remove that which you don’t.

After resolving: git add then git commit¹ as usual.

1. If part of a rebase we might use git rebase --continue instead.

Exercise 4

It would be a good idea to rebase our pot-temp-eqn on main to pick up the merged changes from pressure-eqn. Since this edited the atmospheric.py in the same location it will create a merge conflict.

Resolve the conflict cleanly in your editor (hint: We want to keep both functions.), add the result, and continue the rebase until complete.

Finish off by returning to main and merging in the rebased pot-temp-eqn branch.

Try splitting into pairs, one of you use a direct rebase, the other an interactive rebase.

Exercise 4 — Solution

Direct:

git checkout pot-temp-eqn
git rebase main
<Resolve the merge conflict, add, and continue to complete the rebase.>
git checkout main
git merge pot-temp-eqn

Interactive:

git checkout pot-temp-eqn
git rebase -i main
<Review the interactive rebase before saving and exiting>
<Resolve the merge conflict, add, and continue to complete the rebase.>
git checkout main
git merge pot-temp-eqn

Merge Conflicts - example

Often merge conflicts are easy with “keep ours”, “keep theirs”, or “keep both” as a solution.

But sometimes things are more complicated:

def f(x):
    ...
    return y

<<<<<<< HEAD
def f(x, mu):
    ...
    return y - mu
=======
def f(x, sigma):
    ...
    return y / sigma
>>>>>>> other-branch

Resolution:

def f(x, mu, sigma):
    ...
    return (y - mu) / sigma

Patching Additions

Patching Staged Additions

Sometimes you might have edited several parts of a single file during your work, but want to split your changes into separate logical commits.

git add -p (git add --patch) allows us to do this by working through each “hunk” and asking what we should do:

Option	Action
y	Stage this hunk
n	Skip this hunk
s	Split hunk into smaller parts
e	Manually edit the hunk
?	Show explanation of all options

After staging selected hunks, commit them. Remaining changes stay in your working directory for a future commit.

Exercise 5

Make two distinct changes to thermolib/constants.py:

1. Update the STANDARD_TEMPERATURE comment:

   STANDARD_TEMPERATURE = 288.15  # Standard temperature (K) at sea level

2. Add a new constant after the temperature setting:

   LATENT_HEAT_VAPORIZATION = 2.5e6  # Latent heat of vaporization (J/kg)

This creates two separate hunks in the file. Use git add -p to stage and commit only one change, then stage and commit the other.

Exercise 5 - Solution

<edit thermolib/constants.py as described in the exercise and save.>
git add -p thermolib/constants.py
<Stage the STANDARD_TEMPERATURE (y), skip the LATENT_HEAT_VAPORIZATION (n)>
git commit -m "Clarify standard temperature as sea-level value"
git add -p thermolib/constants.py
# Stage the LATENT_HEAT_VAPORIZATION edit (y)
git commit -m "Add latent heat of vaporization constant"

Note

Note: the -p is not strictly required the second time.

Git Bisect

Bisect

You discover that the test suite is failing on the latest commit, but you know it was passing before. Manual searching could take a long time.

git bisect performs a binary search through your commit history to find the exact commit that introduced a bug.

Manual bisect process

For complicated processes we can run git bisect manually, only advancing to the next commit when we are ready.

git bisect start
git bisect good <known-good-commit>
git bisect bad HEAD          # current commit is broken
# git checks out a midpoint commit
# You test it and mark:
git bisect good              # if it passes
git bisect bad               # if it fails
# Repeat until the offending commit is found
git bisect reset

Automated bisect process

For more straightforward processes we can run automated bisect.

This takes a command and uses the exit code to decide if the commit is good (0) or bad (non-0). The full search can then be run without further user-input.

This is well suited to simple commands such as running a test-suite or searching for the presence of a specific file/piece of code.

For example, with pytest:

git bisect start HEAD <known-good-commit>
git bisect run python -m pytest

Exercise 6

If we run the test suite for thermolib we see that someone made a commit at some point that results in test failures. It’s not obvious where, or why these two tests fail, so we’d like to track this down with git bisect.

Use git bisect to locate the exact commit where the tests broke.

1. Identify a known-good commit (check the log)
2. Start the bisect
3. Let git bisect run find the culprit

Exercise 6 - Solution

Verify the broken tests:

pytest ./

Identify the offending commit using bisect:

git log --oneline          # identify good commit (e.g. 275ef1b)
git bisect start HEAD 275ef1b
git bisect run python -m pytest
git bisect reset

git bisect will narrow down to the single commit where tests first fail.

Tip

We could use pytest test/unit/test_moisture.py to only run the failing tests.

Closing

Summary

Topic	Key Command	What it does
Amending	git commit --amend	Add changes to the previous commit
Stash	git stash push / pop	Shelve WIP temporarily
Rebase	git rebase	Replay / squash commits
Conflict resolution	Manual edit + git add	Fix overlapping changes
Patched additions	git add -p	Add only parts (hunks) of a changed file
Bisect	git bisect run	Binary search for bugs

Beyond today

• git commit --fixup — mark a commit to be combined with an older one in history using rebase with auto-squash
• git cherry-pick — apply a specific commit to the current branch

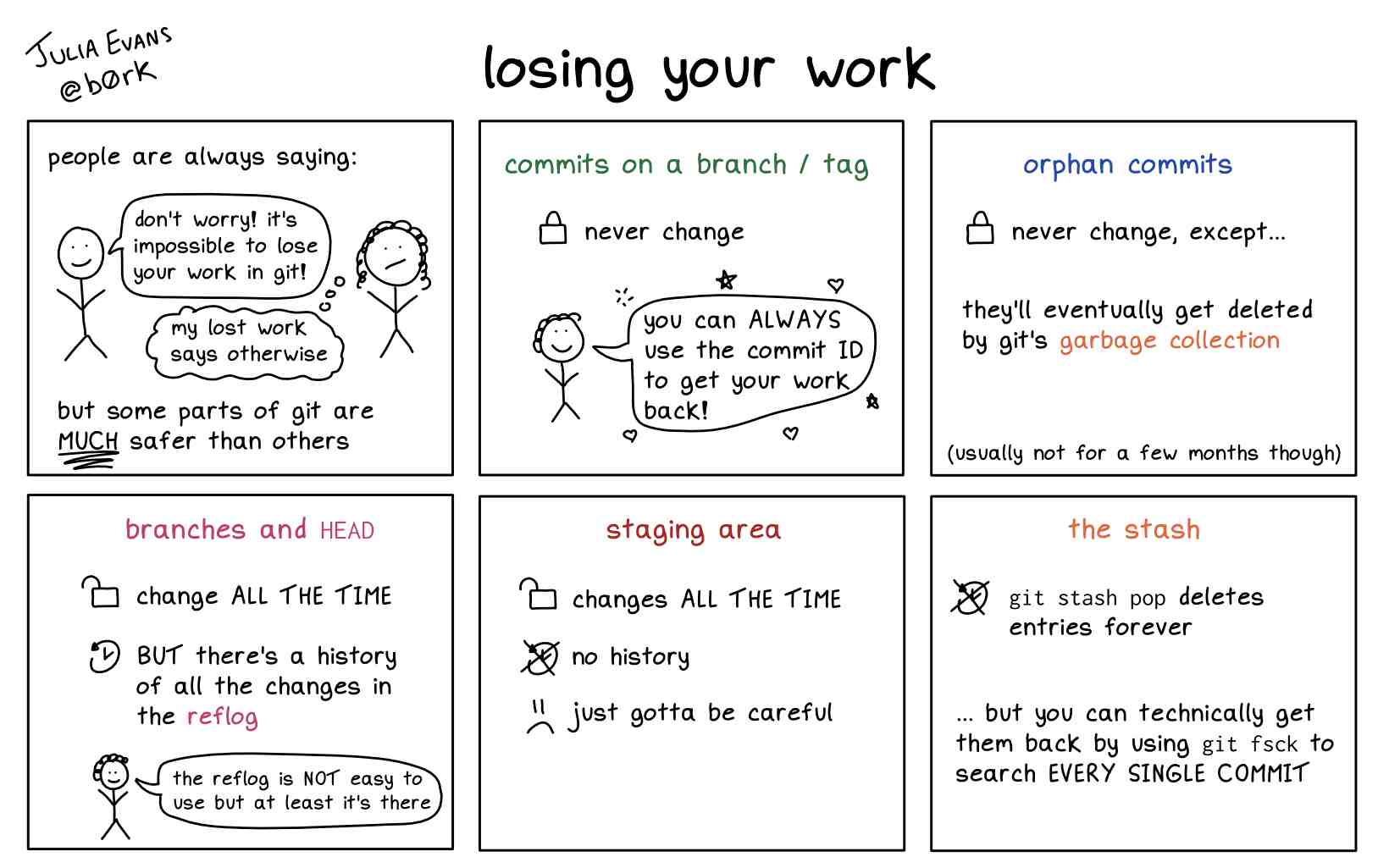

• git reflog — recovery of “lost” commits
• Pre-commit hooks — automate linting and testing before committing
• Merge strategies — merge commit, rebase, squash

Where can I learn more?

• References and links in these slides

• Pro Git book

• If something has gone really wrong: ohshitgit.com

• GitButler’s 2024 FOSDEM talk “so you think you know git?”:

Thanks

Get in touch:

 Jack Atkinson

 jackatkinson.net

 jwa34[AT]cam.ac.uk

 jatkinson1000

 @jatkinson1000@hachyderm.io

 Mikolaj Kowalski

 jwa34[AT]cam.ac.uk

 Mikolaj-A-Kowalski

References

Evans, J. 2024. Do We Think of Git Commits as Diffs, Snapshots, and/or Histories? Https://jvns.ca/blog/2024/01/05/do-we-think-of-git-commits-as-diffs--snapshots--or-histories/.

Mukerjee, A. 2024. Unpacking Git Packfiles. Https://codewords.recurse.com/issues/three/unpacking-git-packfiles.
